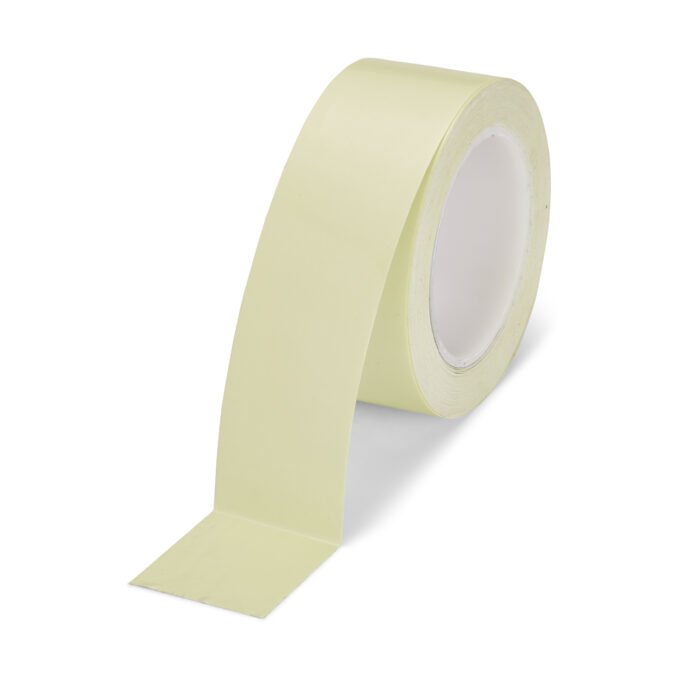

Photoluminescent Marking Tape Manufacturer

H8101

  • Cost-effective, photoluminescent marking tape
  • Supplied in rolls or die cuts
  • Available in different colours
  • Available in rolls from 5mm to 585mm

Glow In The Dark Marking Tape

Smooth Surface

Fire Exit Safety

Okay For Domestic & Commercial

Suitable For Domestic & Commercial Use

EGRESS GLOW IN THE DARK MARKING TAPE

Egress tape is the term used to describe a smooth photoluminescent (glow in the dark) marking tape. Photoluminescent tape is constructed from a conventional self-adhesive plastic base film impregnated with photoluminescent powder. The material is charged by natural or artificial lights when the lights dim the product instantly displays a bright light.

Applications

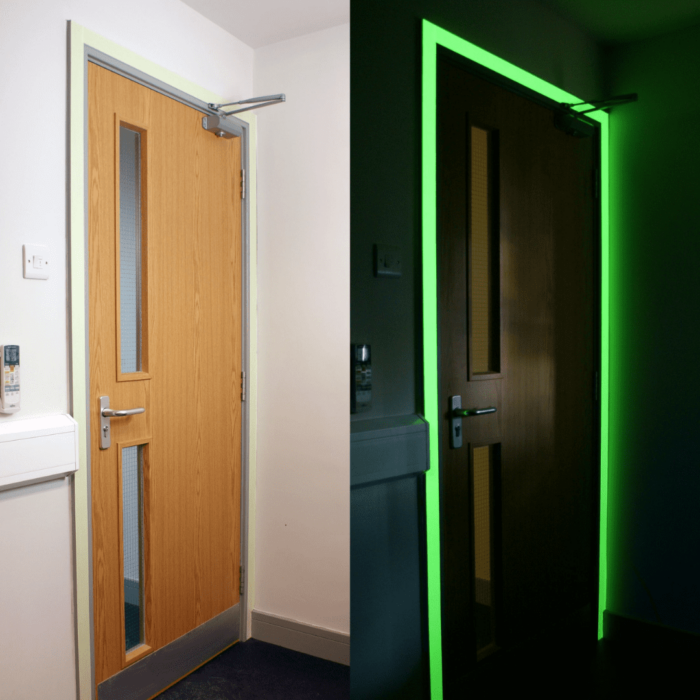

Egress tape is most prevalent in America. America has the strictest regulations governing use; for tall buildings such as skyscrapers, it is required that photoluminescent tape is applied onto the top of skirting boards (baseboards in America). In case of fire the smoke is hot so rises to the top of the room or corridor this creates significant problems for the unfortunate inhabitants as the smoke prevents any light penetrating thus resulting in the occupiers becoming lost and disorientated in the burning building even if they are familiar with the building layout. A strip of Egress tape on top of skirting boards and around door surrounds people to crawl along walkways and see exits and access routes etc.

H8101 Photoluminescent tape is commonly used as a base in other Heskins manufactured materials including Glow Line Safety-Grip, photoluminescent Safety-Grip and dual-purpose Safety-Grip die cuts.

The optimal application temperature for egress glow in the dark tape is 10°C or above.

Application Temperature Graph -5 to 50 Grey    Optimal Service Temperature

Additional Colour Options

Egress glow in the dark marking tape is made the world over using a neutral, photoluminescent base, which is a pale green during the day and when the lights go out, the afterglow is emitted as a glowing green.
Due to customer demand, we have produced egress glow in the dark marking tape in 4 new colours. Blue, red, yellow and orange. To produce these, an additional step was added in the manufacturing process to add pigment to the base to create new colours, who’s daytime colour is only bested by the vibrant afterglow they emit. This additional manufacturing step results in a material that has a slightly higher cost but still falls in line with the cost-effective, glow in the dark marking solution that egress tape is.

While Heskins glow in the dark marking tape is supplied in rolls, we can produce any roll width within the tolerances. Die-cut shapes are available in almost any shape.

Glow in the dark photoluminescent egress marking tape is an inexpensive product; it provides an excellent level of reassurance and safety for a low-cost level.

To enquire or place an order, you can contact the Heskins sales team by phone, Live Chat or the contact us form on the website.

VIDEOS

clean surface with H3508 IPA surface cleaner

messure tape to length

cut tape to length

peel off adhesive film

align & apply

DESIGN

Please click on the images to view the Dimensions.

L

TL528 – 200mm x 200mm

COLOUR

H8101X

Pantone / RAL
7485 U / 6019

Average LRV
78.25

Photoluminescent

H8101R

Pantone / RAL

Average LRV

93.34

Red

H8101O

Pantone / RAL

Average LRV

97.48

Orange

H8101Y

Pantone / RAL

Average LRV

99.97

Yellow

H8101B

Pantone / RAL

Average LRV

35.67

Blue

TECH SPECS

PRODUCT CODE COLOUR AV. LRV RANGE
H8101X Photoluminescent 78.25 3
H8101R Red 94.34 1.96
H8101O Orange 97.48 0.55
H8101Y Yellow 99.97 0.2
H8101B Blue 35.67 2.28
